First you need to learn the basic truth tables for the following logic gates. Ready-to-use worksheets and activties you can immediately use in your classroom to teach the following topics.
Using logic lab and computing 101.

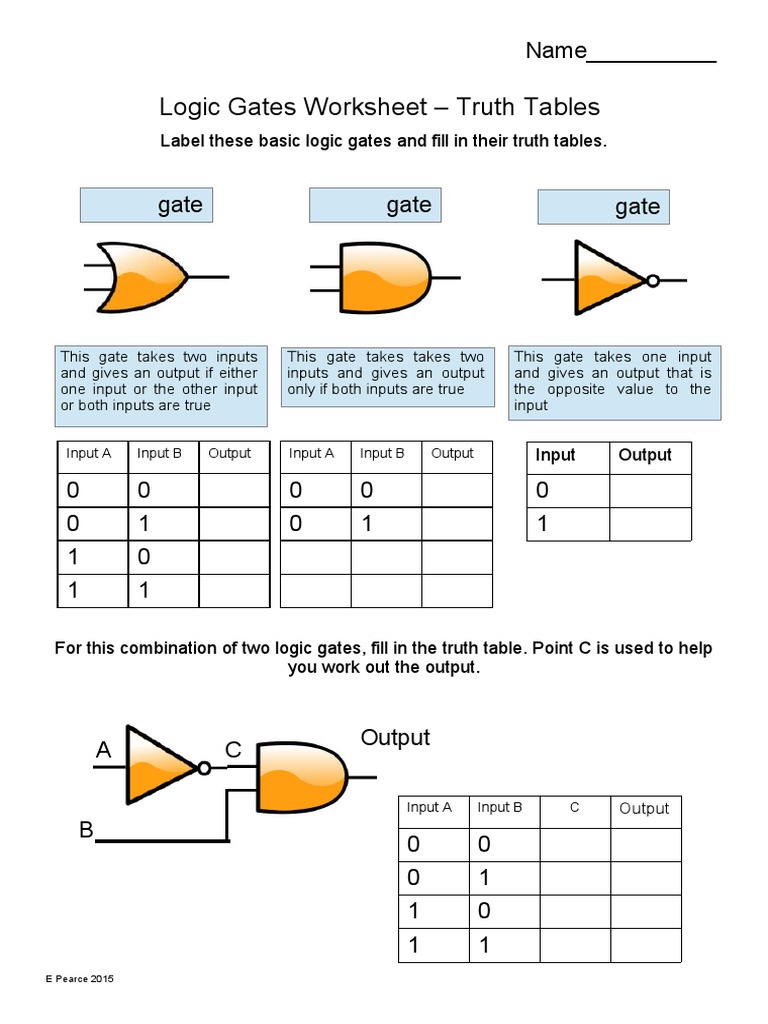

Logic gates truth tables worksheet. Gate gate gate This gate takes two inputs and gives an output if either one input or the other input or both inputs are true This gate takes one input and gives an output that is the opposite value to the input This gate takes takes two inputs and gives an output only if both inputs are true Input Output 0 1 Input A Input B Output 0 0 0 1 1 0 1 1 Input A Input B Output 0 0 0 1 For this combination of two logic gates fill in the truth table. Live worksheets English. Logic gate truth tables.
Name logic gates and fill in the truth tables. Drag and drop the boolean expressions for each gate. Using logic lab and computing 101.
The fact that you have the cheek to reply to my comment in such a manner is very bold for someone of your mental capacity who rips off fellow coders work and sells it for a small mortgage. Constructing Truth Tables To create a truth table follow these steps. Determine the number of variables.
For n variables create a table with 2n rows. 2If there are two variables p q then you will need 2 or 4 rows. If there are three variables p q and r you will need 23 or 8 rows.
Logic Gate Worksheet 1. A Logic circuit has two inputs being X and Y fill in all the possible combinations. The figure below shows a logic circuit and its incomplete truth table.
Complete the below truth table. The figure below shows a logic circuit and its incomplete truth table. Complete its truth table.
Microsoft Word - Logic and Truth Tablesdocx Author. Some of the worksheets for this concept are Truth tables for negation conjunction and disjunction Practice exercises Logic gates work truth tables Truth tables Truth tables T t t f f t f f Logic work 1 Propositional logic truth tables and predicate logic. Found worksheet you are looking for.
To downloadprint click on pop-out icon or print icon to worksheet to print or download. Conjunction with other gates. The truth table logic symbol and Boolean expression for the NOT gate are shown below.
The NAND gate The next gate is simply the combination of the NOT gate introduced in Lesson 1 with the AND gate. This is known as a NAND gate which is the exact opposite of the AND gate ie the output is. Sum of First Numbers.
Logic Gates Exercises Logic Gates Exercises Build truth tables for following logic gates. In order to familiarize students with the standard logic gate types I like to given them practice with identification and truth tables each day. Students need to be able to recognize these logic gate types at a glance or else they will have difficulty analyzing circuits that use them.
ADE LAB WORKSHEET Student Name. 20BCS5224 Date of Performance. 7 SEP 2020 Branch.
Digital electronic Aim. Validate truth table for. NAND gates HD74LS00 NOR gates HD74LS02 NOT gates HD74LS04 AND gates HD74LS08 XOR gates HD74LS86 Task.
To verify the truth table of AND gate OR gate NOR gate NAND gate NOT gate using NAND NOR gate. WORKSHEET 1 ANSWERS Complete the truth tables for the following gates. B c a Complete the truth table for the following combination.
A Give the logic statement for this combination. 4 5 Symbol Truth table A B Q 0 0 0 0 1 0 1 0 0 1 1 1 A B C D 0 0 0 1 1 0 0 1 0 1 0 1 1 1 1 0 A A B Q Symbol Truth table A B 0 1 1 0 A B Q B C Q Q NOT A AND B. Ready-to-use worksheets and activties you can immediately use in your classroom to teach the following topics.
- Inside a computer - Binary denary and Hex conversion - Logic Gates and Truth Tables. Suitable for GCSE Computer Science classes and KS3 Computing classes. All packs include an answer booklet making your life even easier.
Gate will be X Y which is fed as input to the NOT gate. So the output of NAND gate is given by XYwhich is equal to X Y X F X. Y F XY Y The logical symbol for two-input NAND gate and the truth table is given below.
X F XY Y XOR Exclusive-OR Gate. An exclusive-OR has two or more input signal but only one output signal. In order to familiarize students with the standard logic gate types I like to given them practice with identification and truth tables each day.
Students need to be able to recognize these logic gate types at a glance or else they will have difficulty analyzing circuits that use them. In this post you will predict the output of logic gates circuits by completing truth tables. First you need to learn the basic truth tables for the following logic gates.
First you will need to learn the shapessymbols used to draw the four main logic gates. Logic Gate Worksheet 1. A Logic circuit has two inputs being X and Y fill in all the possible combinations.
Find the output for the following. The figure below shows a logic circuit and its incomplete truth table. Complete the below truth table.
The figure below shows a logic circuit and its incomplete truth table. Complete its truth table. X Y A B C Q.
